![ssv0308gnb](../image/chanpin/SSV0308GNB.JPG)
- SSV0308GNB 采用非球面技术实现高品质画质
- SSV0308GNB F1.0 大口径比适应昏暗的可见光环境使用
- 多层镀膜技术有效防止眩光、鬼影
- 专业精密加工的高品质镜片,确保质量
- 工业级高精密塑料外壳,一次成型
|
Model No |
SSV0308GNB 日本新产品 |
Image Format Cover |
1/3" ~ 1/4" |
焦点距离 |
3.0 ~ 8.0 mm |
Zoom Ratio 倍数 |
2.0 倍 |
MAX光圈比率 |
1 : F1.0 |
Iris光圈 |
操作 |
直流驱动自动光圈 |
Iris Range |
F1.0 ~F 360 |
速度 |
* * * |
输入电压 |
DC 8 ~ 16V Max. 30mA |
灵敏度调整 |
* * * |
Focus 焦点 |
手调 |
ZOOM 变焦 |
手调 |
Angle Field of View
(D×H×V) |
1/4 inch |
Wide |
96.0° ×70.0° |
Tele |
34.0° ×26.0° |
1/3 inch |
Wide |
70.0° ×52.0° |
Tele |
26.0° ×19.0° |
2/3 inch |
Wide |
* * * |
Tele |
* * * |
1 inch |
Wide |
* * * |
Tele |
* * * |
Minimum Object Distance |
0.3 m |
Back Focal Length |
7.83 ~ 13.90 mm |
Effective Diameter |
Front |
φ20.4 mm |
Rear |
φ10.8 mm |
Filter Screw size |
* * * |
Mount / Flange Back |
CS |
Mechanical Dimension (W×H×L) |
|
Weight |
55g |
Application Temperature Range |
-10°C ~ +50°C (+14°F ~ +122°F) |

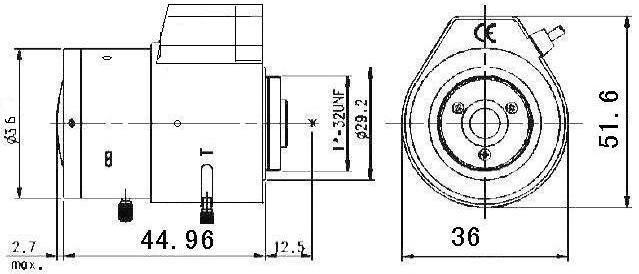

规格图
![](../image/chanpin/SSV0308GNB_3.JPG)
