Model No |
SSG1214 |
SSG1214NB |
Image Format Cover |
1/2" ~ 1/3" |
焦点距离 |
12.0 mm |
MAX光圈比率 |
1 : 1.4 |
Iris光圈 |
Control Method |
视频驱动 |
直流驱动 |
Iris Range |
F1.4 ~ 360 |
速度 |
Approx. 1.5 sec |
* * * |
Input Voltage & Current |
DC 8 ~ 16V Max. 30mA |
* * * |
Sensitivity Adjustment |
0.5 ~ 1.0VP-P |
* * * |
FocusOperation |
Focus 焦点 |
手调 |
Scale |
* * * |
视角
(D×H×V) |
1/4 inch |
27.2° × 21.9° × 16.5° |
1/3 inch |
37.2° × 29.7° × 22.3° |
1/2 inch |
* * * |
1 inch |
* * * |
Minimum Object DistanceMIN可视距离 |
0.2 m |
Back Focal Length 后焦长度 |
9.60 mm |
Effective Diameter |
Front 前部 |
φ9.5 mm |
Rear 后部 |
φ8.7 mm |
Filter Screw size |
M30.5 P=0.5 |
Mount |
CS / 12.5mm |
Mechanical Dimension(D×L)机械尺寸 |
φ37.0mm × 52.0mm × 32.0mm |
Weight重量 |
80.0g |
78.5g |
应用温度环境 |
-10°C ~ +50°C (+14°F ~ +122°F) |

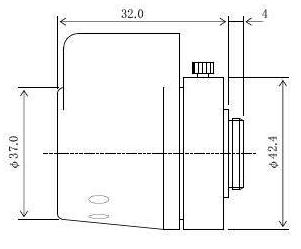

规格图
![](../image/chanpin/ssg1214_4.JPG)
|
