Model No |
SSE0284 |
SSE0284NI |
Image Format Cover |
1/3" ~ 1/4" |
焦点距离 |
2.8 mm |
MAX光圈比率 |
1 : F1.4 |
Iris光圈 |
操作 |
手动调节 |
Iris Range |
F1.4 ~ Close |
FocusOperation |
Focus 焦点 |
手调 |
Scale |
Far Near 远近 |
视角
(D×H×V) |
1/4 inch |
87.2° × 70.3° × 53.0° |
1/3 inch |
117.4° × 95.6° × 72.6° |
2/3 inch |
* * * |
1 inch |
* * * |
Minimum Object DistanceMIN可视距离 |
0.2 m |
Back Focal Length 后焦长度 |
9.30 mm |
Effective Diameter |
Front 前部 |
Φ19.7 mm |
Rear 后部 |
Φ8.9 mm |
Filter Screw size |
--- |
Mount |
CS / 12.5mm |
Mechanical Dimension(D×L)机械尺寸 |
φ30mm × 36.2mm |
Weight重量 |
54.5g |
应用温度环境 |
-10°C ~ +50°C (+14°F ~ +122°F) |

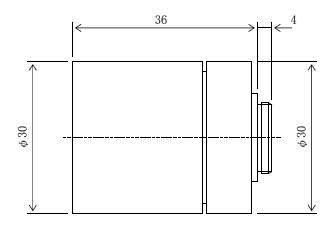

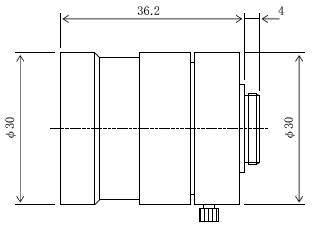

规格图
![](se0284_1.JPG)
SSE0284 SSE0284NI |
