![SL10200A](../image/chanpin/SL10200A.jpg)
Model No |
SL 12240G |
SL 12240P |
SL 12240GNB |
Image Format Cover |
1/2" ~ 1/3" |
焦点距离 |
12 ~ 240 mm |
MAX光圈比率 |
1 : 2.2 |
Iris光圈 |
操作 |
视频驱动 |
直流驱动 |
Iris Range |
F2.2 ~ 360 |
速度 |
0.3 S |
0.4 S |
输入电压 |
DC 8 ~ 16V Max. 30mA |
DC 12V Max. 50mA |
灵敏度调整 |
0.5 ~ 1.0VP-P |
* * * |
Focus 焦点 |
控制方式 |
电动 |
电动/预置 |
电动 |
速度 |
0.4 S |
输入电压 |
DC 12V Max. 50mA |
ZOOM 变焦 |
控制方式 |
电动 |
电动/预置 |
电动 |
速度 |
0.4 S |
输入电压 |
DC 12V Max. 50mA |
Angle Field of View
(D×H×V) |
1/3 inch |
Wide |
27.5° × 22.2° × 16.7° |
Tele |
1.5° × 1.2° × 0.9° |
1/2 inch |
Wide |
37.0° × 29.7° × 22.4° |
Tele |
1.9° × 1.6° × 1.2° |
2/3 inch |
Wide |
* * * |
Tele |
* * * |
1 inch |
Wide |
* * * |
Tele |
* * * |
Minimum Object Distance |
1.5 m |
Back Focal Length |
14.73 mm |
Effective Diameter |
Front |
φ57.0 mm |
Rear |
φ13.8 mm |
Filter Screw size |
M62.0 P=0.75 |
Mount / Flange Back |
C / 17.526mm |
Mechanical Dimension (W×H×L) |
78.0mm × 92.0mm × 169.6mm |
Weight |
970.0g |
Application Temperature Range |
0°C ~ +50°C |

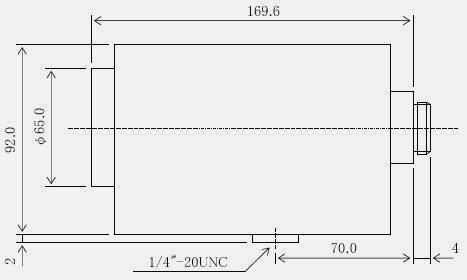

规格图
![](../image/chanpin/SL12240_3.JPG)
|
