![SE1212](../image/chanpin/se1212.JPG)
Model No |
SE1212 |
Image Format Cover |
1/2" ~ 1/3" |
焦点距离 |
12.0 mm |
MAX光圈比率 |
1 : 1.2 |
Iris光圈 |
操作 |
手动调节 |
Iris Range |
F1.2 ~ Close |
FocusOperation |
Focus 焦点 |
手调 |
Scale |
|
视角
(D×H×V) |
1/3 inch |
27.4° × 22.1° × 16.7° |
1/2 inch |
37.1° × 29.7° × 22.3° |
2/3 inch |
* * * |
1 inch |
* * * |
Minimum Object DistanceMIN可视距离 |
0.3 m |
Back Focal Length 后焦长度 |
12.10 mm |
Effective Diameter |
Front 前部 |
φ11.2 mm |
Rear 后部 |
φ11.0 mm |
Filter Screw size |
M34.0 P=0.5 |
Mount |
C / 17.526mm |
Mechanical Dimension(D×L)机械尺寸 |
φ37.0mm × 34.5mm |
Weight重量 |
74.5g |
应用温度环境 |
-10°C ~ +50°C (+14°F ~ +122°F) |

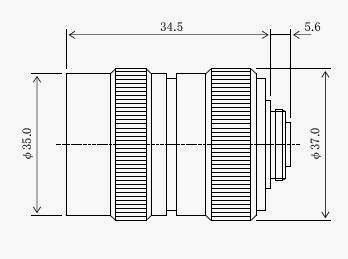

规格图
|
