![SL06072A](../image/chanpin/SSL 06072.jpg)
Model No |
SSLl06036A-1 |
SSL 06036P-1 |
SSL 06036G-1 |
Image Format Cover |
1/3" ~ 1/4" |
焦点距离 |
6.0 ~ 36 mm |
MAX光圈比率 |
1 : F1.4 |
Iris光圈 |
操作 |
视频驱动 |
电机拉动 |
Iris Range |
F1.4(1.5) ~ 360 |
F1.4(1.5) ~ Close |
速度 |
0.2 S |
输入电压 |
DC 8 ~ 16V Max. 30mA |
DC 12V Max. 50mA |
灵敏度调整 |
0.5 ~ 1.0VP-P |
* * * |
Focus 焦点 |
控制方式 |
电动 |
电动/预置 |
电动 |
速度 |
0.2 S |
输入电压 |
DC 12V Max. 50mA |
ZOOM 变焦 |
控制方式 |
电动 |
电动/预置 |
电动 |
速度 |
0.2 S |
输入电压 |
DC 12V Max. 50mA |
Angle Field of View
(D×H×V) |
1/4 inch |
Wide |
40.1° × 32.3° × 24.4° |
Tele |
7.3° × 5.9° × 4.4° |
1/3 inch |
Wide |
54.0° × 43.6° × 32.8° |
Tele |
9.5° × 7.7° × 5.8° |
2/3 inch |
Wide |
* * * |
Tele |
* * * |
1 inch |
Wide |
* * * |
Tele |
* * * |
Minimum Object Distance |
1.3 m |
Back Focal Length |
12.50 mm |
Effective Diameter |
Front |
φ35.0 mm |
Rear |
φ11.0 mm |
Filter Screw size |
M43.0 P=0.75 |
Mount / Flange Back |
CS / 12.5mm |
Mechanical Dimension (W×H×L) |
59mm × 73mm × 66mm |
Weight |
345.0g |
364.0g |
360.0g |
Application Temperature Range |
-10°C ~ +50°C (+14°F ~ +122°F) |

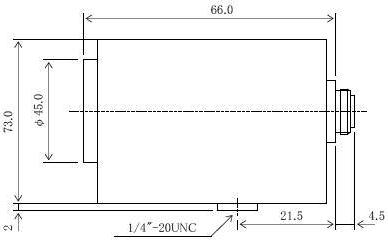

规格图
![](../image/chanpin/SSL0636_3.JPG) ![](../image/chanpin/SSL0636_4.JPG)
|
