![SR12575](../image/chanpin/SR12575S.jpg)
Model No |
SR12575 |
Image Format Cover |
2/3" ~ 1/3" |
焦点距离 |
12.5 ~ 75 mm |
MAX光圈比率 |
1 : 1.8 |
Zoom Ratio 变焦倍数 |
6.0 倍 |
Iris光圈 |
Control Method |
手动 |
Iris Range |
F1.8 ~ Close |
速度 |
* * * |
Input Voltage & Current |
* * * |
Sensitivity Adjustment |
* * * |
Focus 焦点 |
控制方式 |
手调 |
Zoom 变焦 |
控制方式 |
手调 |
视角
(D×H×V) |
1/3 inch |
Wide |
26.6° × 21.2° × 16.1° |
Tele |
4.5° × 3.6° × 2.7° |
1/2 inch |
Wide |
34.9° × 28.3° × 21.4° |
Tele |
6.0° × 4.8° × 3.6° |
2/3 inch |
Wide |
47.9° × 38.7° × 29.3° |
Tele |
8.2° × 6.6° × 4.9° |
1 inch |
Wide |
* * * |
Tele |
* * * |
Minimum Object DistanceMIN可视距离 |
1.0 m |
Back Focal Length 后焦长度 |
17.19 mm |
Effective Diameter |
Front 前部 |
φ44.0 m |
Rear 后部 |
φ13.0 mm |
Filter Screw size |
M49.0 P=0.75 |
Mount |
C / 17.526mm |
Mechanical Dimension(D×L)机械尺寸 |
φ54.4mm × 100.5mm |
Weight重量 |
368.0g |
应用温度环境 |
-10°C ~ +50°C (+14°F ~ +122°F) |

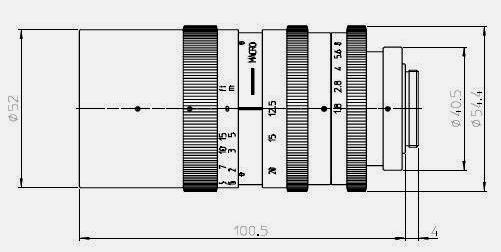

规格图
|
